MenuItem菜单

MenuItem特性可以拓展Unity原有的菜单和脚本的Context菜单，当然也可以自定义自己的菜单

所有MenuItem执行的方法都必须是静态的

覆盖系统菜单

1
2
3
4
5
6
[MenuItem("GameObject/UI/Text")]

static void MyTextMethod()//直接写有可能会弹出警告
{
    Debug.Log("Text");
}

自定义菜单

在Editor文件夹中新建CustomTitleMenu脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
using UnityEngine;
using UnityEditor;

public class CustomTitleMenu
{
    [MenuItem("Root/Test1", false, 0)]

    static void MyTest1() { }

    [MenuItem("Root/Test2", false, 1)]

    static void MyTest2() { }

    [MenuItem("Root/Test/My Test")]//自动添加下划线，原因书中没有表述清楚，待查

    static void MyTest() { }
    [MenuItem("Root/Test/My Test", true, 20)]//第二个参数，表示此方法会先于同名特性方法执行，并设定此特性激活条件

    static bool MyTestValidation()
    {
        return false;//返回FALSE后，菜单中的My Test就不能点击了，也就是这个方法先执行，用来验证My Test能不能被激活，返回bool
    }

    [MenuItem("Root/Test3", false, 3)]

    static void MyTest3()//设置菜单可选中的方法
    {
        var menuPath = "Root/Test3";
        bool mchecked = Menu.GetChecked(menuPath);
        Menu.SetChecked("Root/Test3", !mchecked);
    }
}

结果如下图所示

image-20211229192326824

原生自定义菜单

使用下列脚本，在Scene窗口中单击右键就可以弹出一个菜单

在Editor文件夹中新建CreatingOriginMenu脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
using UnityEngine;
using UnityEditor;

public class CreatingOriginMenu
{
    [InitializeOnLoadMethod]

    static void InitializeOnLoadMethod()
    {
        SceneView.duringSceneGui += delegate (SceneView sceneView)
        {
            Event e = Event.current;
            if (e != null && e.button == 1 && e.type == EventType.MouseUp)//当鼠标右键抬起时运行
            {
                Vector2 mousePosition = e.mousePosition;

                //设置菜单项
                var options = new GUIContent[]
                {
                    new GUIContent("Text1"),
                    new GUIContent("Text2"),
                    new GUIContent(""),
                    new GUIContent("Text3"),
                    new GUIContent("Text4"),
                };

                //设置菜单显示区域和EditorUtility.DisplayCustomMenu的必要参数
                var selected = -1;
                var userData = Selection.activeGameObject;
                var width = 100;
                var height = 100;
                var position = new Rect(mousePosition.x, mousePosition.y - height, width, height);

                //执行EditorUtility.DisplayCustomMenu来显示菜单
                EditorUtility.DisplayCustomMenu(position, options, selected, delegate (object data, string[] opt, int select)
                   {
                       Debug.Log(opt[select]);
                   }, userData);
                e.Use();
            }


        };

    }
}

拓展全局自定义按键

在Editor文件夹中新建CustomHotKey脚本

1
2
3
4
5
6
7
8
9
10
11
12
using UnityEngine;
using UnityEditor;

public class CustomHotKey
{
    [MenuItem("Assets/Hotkey %#D",false,-1)]

    static void MyHotKey()
    {
        Debug.Log("Ctrl Shift D");
    }
}

符号表示的是快捷键，

  • %： Windows的Ctrl键、macOS下的Commad键
  • #： Shift键
  • &： Alt键
  • LEFT/RIGHT/UP/DOWN： 表示上下左右键
  • F1……F2：表示F1~F12快捷键
  • HOME、END、PGUP、PGUN

面板拓展

使用EditorGUI来自定义脚本Inspector的序列化方式以及拓展自己的窗口等

Inspector面板

拓展方式类似于之前拓展Inspector窗口时使用的方式，使用CustomEditor特性

在Script文件夹中新建InspectorWithEditorGUI脚本

在实际应用中，建议将此脚本后面编辑器的部分拆分出来放在Editor文件夹里

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
using UnityEngine;
#if UNITY_EDITOR
using UnityEditor;
#endif

public class InspectorWithEditorGUI : MonoBehaviour
{
    public Vector3 scollPos;
    public int myId;
    public string myName;
    public GameObject prefab;
    public MyEnum myEnum = MyEnum.One;
    public bool toggle1;
    public bool toggle2;
    public enum MyEnum
    {
        One = 1,
        Two,
    }
}

#if UNITY_EDITOR
[CustomEditor(typeof(InspectorWithEditorGUI))]
public class InspectorWithEditor : Editor
{
    private bool m_EnableToggle;

    public override void OnInspectorGUI()
    {
        //在这一步获取对象，之前我们绘制Camera辅助UI时也有这一步
        InspectorWithEditorGUI script = target as InspectorWithEditorGUI;

        //绘制滚动条
        script.scollPos = EditorGUILayout.BeginScrollView(script.scollPos, false, true);

        script.myName = EditorGUILayout.TextField("text", script.myName);

        script.myId = EditorGUILayout.IntField("int", script.myId);

        script.prefab = EditorGUILayout.ObjectField("GameObject", script.prefab, typeof(GameObject), true) as GameObject;

        //绘制按钮
        EditorGUILayout.BeginHorizontal();
        GUILayout.Button("1");
        GUILayout.Button("2");
        EditorGUILayout.EndHorizontal();

        EditorGUILayout.BeginHorizontal();
        script.myEnum = (InspectorWithEditorGUI.MyEnum)EditorGUILayout.EnumPopup("My Enum:", script.myEnum);
        EditorGUILayout.EndHorizontal();

        m_EnableToggle = EditorGUILayout.BeginToggleGroup("EnableToggle", m_EnableToggle);
        script.toggle1 = EditorGUILayout.Toggle("Toggle1", script.toggle1);
        script.toggle2 = EditorGUILayout.Toggle("Toggle2", script.toggle2);
        EditorGUILayout.EndToggleGroup();

        //结束绘制滚动条
        EditorGUILayout.EndScrollView();

    }
}
#endif

EditorWindows窗口

使用EditorWindows可以制作自己的窗口,继承后使用EditorWindow.GetWindow方法即可打开自己的窗口

在Editor文件夹中新建CustomEditorWindow脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
using UnityEngine;
using UnityEditor;

public class CustomEditorWindow : EditorWindow
{
    [MenuItem("Window/My Window")]
    static void Init()
    {
        CustomEditorWindow window = (CustomEditorWindow)EditorWindow.GetWindow(typeof(CustomEditorWindow),false,"MY CUSTOM");
        window.Show();
    }
    private Texture m_Mytexture = null;
    private float m_Myfloat = 0.5f;

    private void Awake()
    {
        Debug.LogFormat("窗口初始化时调用");
        m_Mytexture = AssetDatabase.LoadAssetAtPath<Texture>("Assets/unity.png");
    }

    private void OnGUI()
    {
        GUILayout.Label("Hello World!", EditorStyles.boldLabel);
        m_Myfloat = EditorGUILayout.Slider("滑块", m_Myfloat, -5, 5);
        GUI.DrawTexture(new Rect(0, 30, 100, 100), m_Mytexture);
    }
    private void OnDestroy()
    {
        Debug.LogFormat("窗口销毁时调用");
    }
    private void OnFocus()
    {
        Debug.LogFormat("窗口有焦点时调用");
    }
    private void OnHierarchyChange()
    {
        Debug.LogFormat("hierarchy窗口发生变化调用");
    }
    private void OnInspectorUpdate()
    {
       // Debug.LogFormat("Inspector窗口每帧更新");
    }
    private void OnLostFocus()
    {
        Debug.LogFormat("失去焦点时调用");
    }
    private void OnProjectChange()
    {
        Debug.LogFormat("Project视图发生变化时调用");
    }
    private void OnSelectionChange()
    {
        Debug.LogFormat("在Project或Hierarchy窗口选择一个对象时调用");
    }
    private void Update()
    {
        //Debug.LogFormat("每帧调用");
    }
}

EditorWindow下拉菜单

为了使自定义的Editor窗口也拥有自定义的下拉菜单，需要先实现IHasCustomMenu接口

在Editor文件夹中新建EditorWindowWithDropdown脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
using UnityEngine;
using UnityEditor;

public class EditorWindowWithDropdown : EditorWindow ,IHasCustomMenu
{
    void IHasCustomMenu.AddItemsToMenu(GenericMenu menu)
    {
        menu.AddDisabledItem(new GUIContent("Disable"));
        menu.AddItem(new GUIContent("Test1"), true, () => { Debug.Log("Test1"); });
        menu.AddItem(new GUIContent("Test2"), true, () => { Debug.Log("Test2"); });
        menu.AddSeparator("Test/");
        menu.AddItem(new GUIContent("Test/Test3"), true, () => { Debug.Log("Test3"); });
    }

    [MenuItem("Window/Open My Window")]
    static void Init()
    {
        EditorWindowWithDropdown windowWithDropdown = (EditorWindowWithDropdown)EditorWindow.GetWindow(typeof(EditorWindowWithDropdown),false,"WithDropDown");
        windowWithDropdown.Show();
    }
}

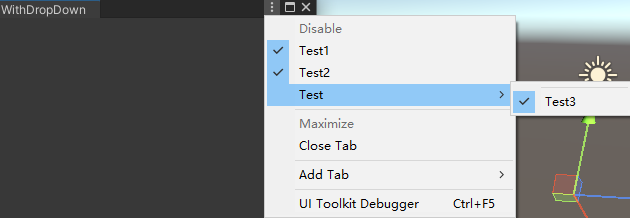

通过AddItem来添加列表元素，并且监听选择后的事件

image-20211230155826687

预览窗口

有些资源选择后，Inspector面板下方会出现预览窗口，但是有些资源是没有预览信息的，我们可以重写覆盖此资源的预览信息

在Editor文件夹中新建CustomPreviewWindow脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
using UnityEngine;
using UnityEditor;

[CustomPreview(typeof(GameObject))]
public class CustomPreviewWindow : ObjectPreview
{
    public override bool HasPreviewGUI()
    {
        return true;
    }

    public override void OnPreviewGUI(Rect r, GUIStyle background)
    {
        GUI.DrawTexture(r, AssetDatabase.LoadAssetAtPath<Texture>("Assets/unity.png"));
        GUILayout.Label("Hello World");
    }
}

image-20211230160748416

继承ObjectPreview并且重写OnPreviewGUI方法，在CustomPreview(typeof(GameObject))中的GameObject按自己的需要修改为系统对象或自定义脚本对象

获取预览信息

有一些资源是有预览信息的，如果需要在自定义窗口中也能显示资源的预览信息，可以使用下面的脚本

在Editor文件夹中新建GetPreviewMessage脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
using UnityEngine;
using UnityEditor;

public class GetPreviewMessage : EditorWindow
{
    private GameObject m_MyGo;
    private Editor m_MyEditor;

    [MenuItem("Window/Open My Preview")]
    static void Init()
    {
        GetPreviewMessage window = (GetPreviewMessage)EditorWindow.GetWindow(typeof(GetPreviewMessage), false, "Preview");
        window.Show();
    }

    private void OnGUI()
    {
        m_MyGo = (GameObject)EditorGUILayout.ObjectField(m_MyGo, typeof(GameObject), true);

        if(m_MyGo != null)
        {
            if(m_MyEditor == null)
            {
                //创建Editor实例
                m_MyEditor = Editor.CreateEditor(m_MyGo);
            }

            //预览它
            m_MyEditor.OnPreviewGUI(GUILayoutUtility.GetRect(500, 500), EditorStyles.whiteLabel);
        }
    }
}

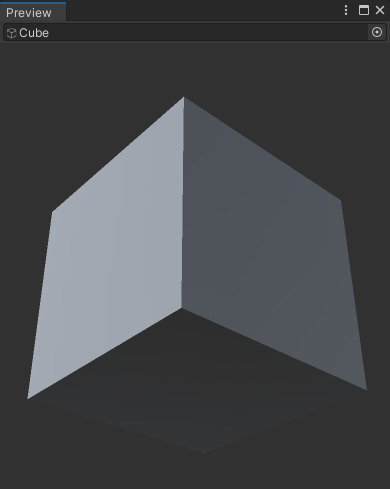

打开自定义的窗口，然后拖拽进一个有预览信息的物体

image-20211230174349026

Unity编辑器的源码

通过Unity Hub安装的Unity，默认安装目录下的编辑器源码地址：“C:\Program Files\Unity\Hub\Editor\2020.3.6f1c1\Editor\Data\Managed\UnityEditor.dll”可参考

查看DLL

常用的查看工具：.NET Reflectior以及ILSpy，可以使用Visual Studio查看类名和方法，但是无法查看源码

清空控制台日志

在Editor文件夹中新建ClearConsoleWindow脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
using UnityEngine;
using UnityEditor;
using System.Reflection;

public class ClearConsoleWindow
{
    [MenuItem("Root/CreatConsole")]
    static void CreatConsole()
    {
        Debug.Log("CreatConsole");
    }
    [MenuItem("Root/CleanConsole")]
    static void CleanConsole()
    {
        //获取Assembly
        Assembly assembly = Assembly.GetAssembly(typeof(Editor));
        //反射获取LogEntries对象
        MethodInfo methodInfo = assembly.GetType("UnityEditor.LogEntries").GetMethod("Clear");
        //反射调用它的Clear方法
        methodInfo.Invoke(new object(), null);
    }
}

获取EditorStyles样式

样式是开发C#应用交互时使用的各种风格，Unity并没有明确说明编辑器使用的样式，我们反射出EditorStyles的属性（Properties），找到GUIStyle并最终在OnGUI中预览出来

在Editor文件夹中新建GetEditorStyles脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
using System.Collections.Generic;
using UnityEngine;
using UnityEditor;
using System.Reflection;

public class GetEditorStyles : EditorWindow
{
    static List<GUIStyle> styles = null;
    [MenuItem("Window/Open Edtior Styles")]
    public static void Test()
    {
        EditorWindow.GetWindow<GetEditorStyles>("styles");

        styles = new List<GUIStyle>();
        //BindingFlags表示反射属性的类型
        foreach (PropertyInfo fi in typeof(EditorStyles).GetProperties(BindingFlags.Static|BindingFlags.Public|BindingFlags.NonPublic))
        {
            object o = fi.GetValue(null, null);
            if(o.GetType() == typeof(GUIStyle))
            {
                styles.Add(o as GUIStyle);
            }
        }
    }

    public Vector2 scrollPosition = Vector2.zero;
    private void OnGUI()
    {
        scrollPosition = GUILayout.BeginScrollView(scrollPosition);
        for (int i = 0; i < styles.Count; i++)
        {
            GUILayout.Label("EditorStyles." + styles[i].name, styles[i]);
        }
        GUILayout.EndScrollView();
    }
}

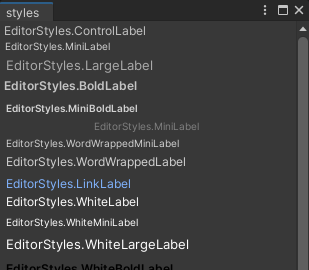

image-20211231165223439

根据反射出来的样式名称，制作Unity编辑器时需要的样式，直接设置style名字即可。（比如之前获取预览信息使用的EditorStyles.WhiteLabel）

获取内置图标样式

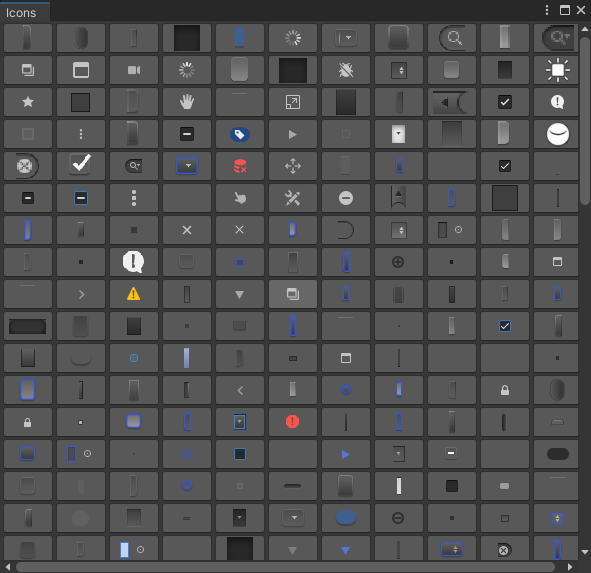

Unity内置了很多图标样式，接下来使用一个小脚本来列出所有的图标

在Editor文件夹中新建GetAllIcons脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
using System.Collections.Generic;
using UnityEngine;
using UnityEditor;

public class GetAllIcons : EditorWindow
{
    [MenuItem("Window/Open Icons")]
    public static void OnenIconWindow()
    {
        EditorWindow.GetWindow<GetAllIcons>("Icons");
    }

    private Vector2 m_Scroll;
    private List<string> m_Icons = null;
    private void Awake()
    {
        m_Icons = new List<string>();
        Texture2D[] t = Resources.FindObjectsOfTypeAll<Texture2D>();//查出所有贴图
        foreach (Texture2D x in t)
        {
            Debug.unityLogger.logEnabled = false;
            GUIContent gc = EditorGUIUtility.IconContent(x.name);//从具有给定名称的 Unity 内置资源中获取 GUIContent。
            Debug.unityLogger.logEnabled = true;
            if(gc != null && gc.image != null)
            {
                m_Icons.Add(x.name);
            }
        }
        Debug.Log(m_Icons.Count);
    }
    private void OnGUI()
    {
        m_Scroll = GUILayout.BeginScrollView(m_Scroll);
        float width = 50f;
        int count = (int)(position.width / width);
        for (int i = 0; i < m_Icons.Count; i += count)
        {
            GUILayout.BeginHorizontal();
            for (int j = 0; j < count; j++)
            {
                int index = i + j;
                if (index < m_Icons.Count)
                    GUILayout.Button(EditorGUIUtility.IconContent(m_Icons[index]), GUILayout.Width(width), GUILayout.Height(30));
            }
            GUILayout.EndHorizontal();
        }
        EditorGUILayout.EndScrollView();
    }
}

image-20220102123112657

拓展默认面板（文件夹面板）

在Unity中点击文件夹，inspector中没有提供多余的显示信息，我们来拓展一下这个默认面板

image-20220102131459366

在Editor文件夹中新建ExtendingFolderPanel脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
using UnityEngine;
using UnityEditor;

[CustomEditor(typeof(UnityEditor.DefaultAsset))]
public class ExtendingFolderPanel : Editor
{
    public override void OnInspectorGUI()
    {
        string path = AssetDatabase.GetAssetPath(target);
        GUI.enabled = true;
        if (path.EndsWith(string.Empty))//判断文件后缀，这里表示引擎无法识别的资源类型，比如文件夹
        {
            GUILayout.Label("拓展文件夹");
            GUILayout.Button("我是文件夹");
        }
    }
}
