这一节我们来实现在刚开始设计时提出的IGunConfigModel

枪械系统需求初步分析

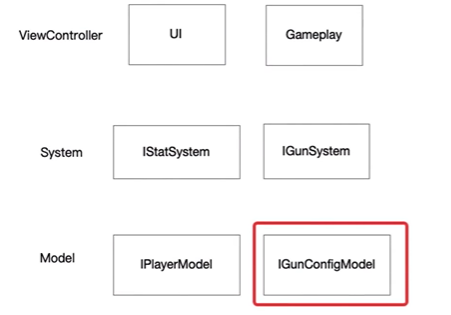

层级一览

IGunConfigModel

我们在之前提到过，GunConfigModel是用来读取数据表的，里面是一些只读数据。我们在前几节写了GunInfo，GunInfo才是在运行时主要的枪械数据来源。

GunInfo

之前在设计GunInfo类的时候，已经设计了一个Name字段，这个Name字段就是用来查询配置相关数据的

所以我们需要让IGunConfigModel提供一个根据名字返回GunConfigItem的方法

IGunConfigModel

在Scripts——Model文件夹内新建IGunConfigModel脚本

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
using System.Collections.Generic;
using FrameWorkDesign;


namespace ShootingEditor2D
{
    public interface IGunConfigModel : IModel
    {
        GunConfigItem GetItemByName(string gunName);
    }

    public class GunConfigModel : AbstractModel, IGunConfigModel
    {
        //注意这里的字典的初始化方式，把键值对放在中括号内即可
        private Dictionary<string,GunConfigItem> mItems = new Dictionary<string, GunConfigItem>()
        {
            { "手枪",new GunConfigItem("手枪",7,1,1,0.5f,false,3,"默认枪") },
            { "冲锋枪",new GunConfigItem("冲锋枪",30,1,6,0.34f,true,3,"无") },
            { "步枪",new GunConfigItem("步枪",50,3,3,1f,true,1,"有一定后坐力") },
            { "狙击枪",new GunConfigItem("狙击枪",12,6,1,1f,true,5,"红外瞄准+后坐力大") },
            { "火箭筒",new GunConfigItem("火箭筒",1,5,1,1f,true,4,"跟踪+爆炸") },
            { "霰弹枪",new GunConfigItem("霰弹枪",1,1,1,0.5f,true,1,"一次发射6~12颗子弹") },
        };
        protected override void OnInit()
        {
            //可以在这里加入读表的代码，将代码加入到mItems里面
        }

        public GunConfigItem GetItemByName(string gunName)
        {
            GunConfigItem item;
            if(mItems.TryGetValue(gunName, out item))
            {
                return item;
            }else
                return null;
        }
    }

    public class GunConfigItem
    {
        public GunConfigItem(string name,int bulletMaxCount,float attack,float frequency,float shootDistance,bool needBullet,float reloadSeconds,string description)
        {
            Name = name;
            BulletMaxCount = bulletMaxCount;
            Attack = attack;
            Frequency = frequency;
            ShootDistance = shootDistance;
            NeedBullet = needBullet;
            ReloadSeconds = reloadSeconds;
            Description = description;
        }

        public string Name { get; set; }
        public int BulletMaxCount { get; set; }
        public float Attack { get; set; }
        public float Frequency { get; set; }
        public float ShootDistance { get; set; }
        public bool NeedBullet { get; set; }
        public float ReloadSeconds { get; set; }
        public string Description { get; set; }

    }
}

C#支持通过构造代码进行初始化，可以像填表一样，将数据填充到C#提供的数据结构中。

在一个项目的初始阶段，假如策划没有把配置表给开发者，我们可以使用以上的方式在代码中配置表，然后等以后策划给到配置表或者配置表格斯定下来后，我们还是可以在IGunConfigModel中去写配置表解析相关代码，然后去填充GunConfigItem对象

将IGunConfigModel注册到架构中

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
using FrameWorkDesign;

namespace ShootingEditor2D
{
    public class ShootingEditor2D : Architecture<ShootingEditor2D>
    {
        protected override void Init()
        {
            this.RegisterSystem<IStatSystem>(new StatSystem());
            this.RegisterSystem<IGunSystem>(new GunSystem());
            this.RegisterSystem<ITimeSystem>(new TimeSystem());

            this.RegisterModel<IGunConfigModel>(new GunConfigModel());//配置表相关的Model都要放在前面
            this.RegisterModel<IPlayerModel>(new PlayerModel());
        }
    }
}

读取GunConfig

修改ShootCommand

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
using FrameWorkDesign;

namespace ShootingEditor2D
{
    public class ShootCommand : AbstractCommand
    {
        public static readonly ShootCommand Instance = new ShootCommand();
        protected override void OnExecute()
        {
            var gunSystem = this.GetSystem<IGunSystem>();
            gunSystem.CurrentGun.AmmoNumInGun.Value--;
            gunSystem.CurrentGun.State.Value = GunState.Shooting;

            var gunConfigItem = this.GetModel<IGunConfigModel>().GetItemByName(gunSystem.CurrentGun.Name.Value);//
            var timeSystem = this.GetSystem<ITimeSystem>();
            timeSystem.AddTaskDelay( 1/gunConfigItem.Frequency, () =>//
            {
                gunSystem.CurrentGun.State.Value = GunState.Idle;
            });
        }
    }
}
