目前枪械系统的功能列表如下

  • 开枪
    • 底层系统层
    • 表现层
  • 填弹
    • 底层系统层
    • 表现层
  • 换枪
    • 底层系统层
    • 表现层
  • 捡枪
    • 底层系统层
    • 表现层
  • 弹药补给
    • 底层系统层
    • 表现层
  • 补给站补给
    • 底层系统层
    • 表现层

功能实现图如下

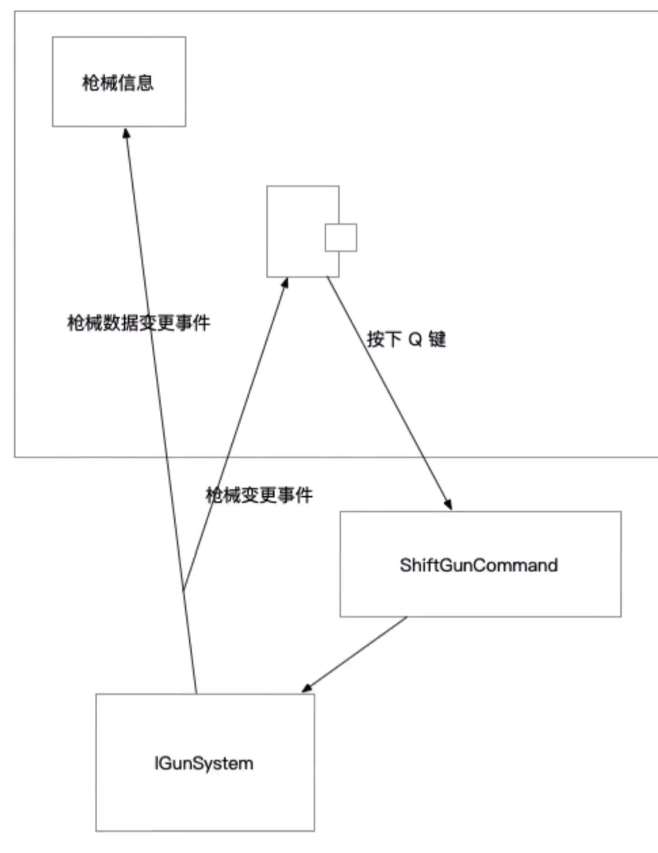

换枪功能实现图

由于我们已经实现了捡枪的操作，所以换枪系统就比较简单了

修改IGunSystem

直接修改IGunSystem

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
using FrameWorkDesign;
using System.Collections.Generic;
using System.Linq;

namespace ShootingEditor2D
{
    interface IGunSystem : ISystem
    {
        GunInfo CurrentGun { get; }
        void PickGun(string name, int ammoNumInGun, int bulletCountOutGun);
        void ShiftGun();//
    }

    public class OnCurrrentGunChanged
    {
        public string Name { get; set; }
    }

    public class GunSystem : AbstractSystem, IGunSystem
    {
        public GunInfo CurrentGun { get; } = new GunInfo()
        {
            AmmoNumInGun = new BindableProperty<int>()
            {
                Value = 3
            },
            BulletCountOutGun = new BindableProperty<int>()
            {
                Value = 1
            },
            Name = new BindableProperty<string>()
            {
                Value = "手枪"
            },
            State = new BindableProperty<GunState>()
            {
                Value = GunState.Idle
            }
        };

        private Queue<GunInfo> mGunInfos = new Queue<GunInfo>();
        //...

        public void ShiftGun()//
        {
            if(mGunInfos.Count > 0)
            {
                var previousGunInfo = mGunInfos.Dequeue();

                var currentGunInfo = new GunInfo()
                {
                    AmmoNumInGun = new BindableProperty<int>()
                    {
                        Value = CurrentGun.AmmoNumInGun.Value
                    },
                    BulletCountOutGun = new BindableProperty<int>()
                    {
                        Value = CurrentGun.BulletCountOutGun.Value
                    },
                    Name = new BindableProperty<string>()
                    {
                        Value = CurrentGun.Name.Value
                    },
                    State = new BindableProperty<GunState>()
                    {
                        Value = GunState.Idle
                    }
                };

                mGunInfos.Enqueue(currentGunInfo);

                CurrentGun.Name.Value = previousGunInfo.Name.Value;
                CurrentGun.AmmoNumInGun.Value = previousGunInfo.AmmoNumInGun.Value;
                CurrentGun.BulletCountOutGun.Value = previousGunInfo.BulletCountOutGun.Value;

                this.SendEvent(new OnCurrrentGunChanged() { Name = previousGunInfo.Name.Value });
            }

        }

        //...
    }
}

实现ShiftGunCommand

在Command文件夹里新建ShitGunCommand文件

1
2
3
4
5
6
7
8
9
10
11
12
using FrameWorkDesign;

namespace ShootingEditor2D
{
    internal class ShiftGunCommand : AbstractCommand
    {
        protected override void OnExecute()
        {
            this.GetSystem<IGunSystem>().ShiftGun();
        }
    }
}

修改Player

修改Player脚本

1
2
3
4
5
6
7
8
9
private void Update()
{
    //...
    if (Input.GetKeyDown(KeyCode.Q))
    {
        this.SendCommand(new ShiftGunCommand());
    }

}

运行游戏，按下Q键，就能切换枪了

代码重构

我们发现，在IGunSystem中，PickGun和ShiftGun的代码有重复，所以我们需要把重复的部分封装成方法。在写代码的过程中，发现有重复的代码就要第一时间封装重构，要养成良好的习惯

我们把重复的代码封装成EnqueueCurrentGun方法，然后修改其他两个方法

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
using FrameWorkDesign;
using System.Collections.Generic;
using System.Linq;

namespace ShootingEditor2D
{
    //...

    public class GunSystem : AbstractSystem, IGunSystem
    {
        //...

        private Queue<GunInfo> mGunInfos = new Queue<GunInfo>();
        public void PickGun(string name, int ammoNumInGun, int bulletCountOutGun)
        {
            if (CurrentGun.Name.Value == name)
            {
                CurrentGun.BulletCountOutGun.Value += ammoNumInGun;
                CurrentGun.BulletCountOutGun.Value += bulletCountOutGun;
            }
            else if (mGunInfos.Any(gunInfo => gunInfo.Name.Value == name))
            {
                var gunInfo = mGunInfos.First(gunInfo => gunInfo.Name.Value == name);
                gunInfo.BulletCountOutGun.Value += ammoNumInGun;
                gunInfo.BulletCountOutGun.Value += bulletCountOutGun;
            }
            else
            {
                EnqueueCurrentGun(name, ammoNumInGun, bulletCountOutGun);
            }
        }

        public void ShiftGun()
        {
            if (mGunInfos.Count > 0)
            {
                var previousGunInfo = mGunInfos.Dequeue();

                EnqueueCurrentGun(previousGunInfo.Name.Value, previousGunInfo.AmmoNumInGun.Value, previousGunInfo.BulletCountOutGun.Value);
            }
        }

        void EnqueueCurrentGun(string nextGunName, int nextAmmoNumInGun, int nextBulletCountOutGun)//
        {
            var currentGunInfo = new GunInfo()
            {
                AmmoNumInGun = new BindableProperty<int>()
                {
                    Value = CurrentGun.AmmoNumInGun.Value
                },
                BulletCountOutGun = new BindableProperty<int>()
                {
                    Value = CurrentGun.BulletCountOutGun.Value
                },
                Name = new BindableProperty<string>()
                {
                    Value = CurrentGun.Name.Value
                },
                State = new BindableProperty<GunState>()
                {
                    Value = GunState.Idle
                }
            };

            mGunInfos.Enqueue(currentGunInfo);

            CurrentGun.Name.Value = nextGunName;
            CurrentGun.AmmoNumInGun.Value = nextAmmoNumInGun;
            CurrentGun.BulletCountOutGun.Value = nextBulletCountOutGun;

            this.SendEvent(new OnCurrrentGunChanged() { Name = nextGunName });
        }

        protected override void OnInit()
        {

        }
    }
}
