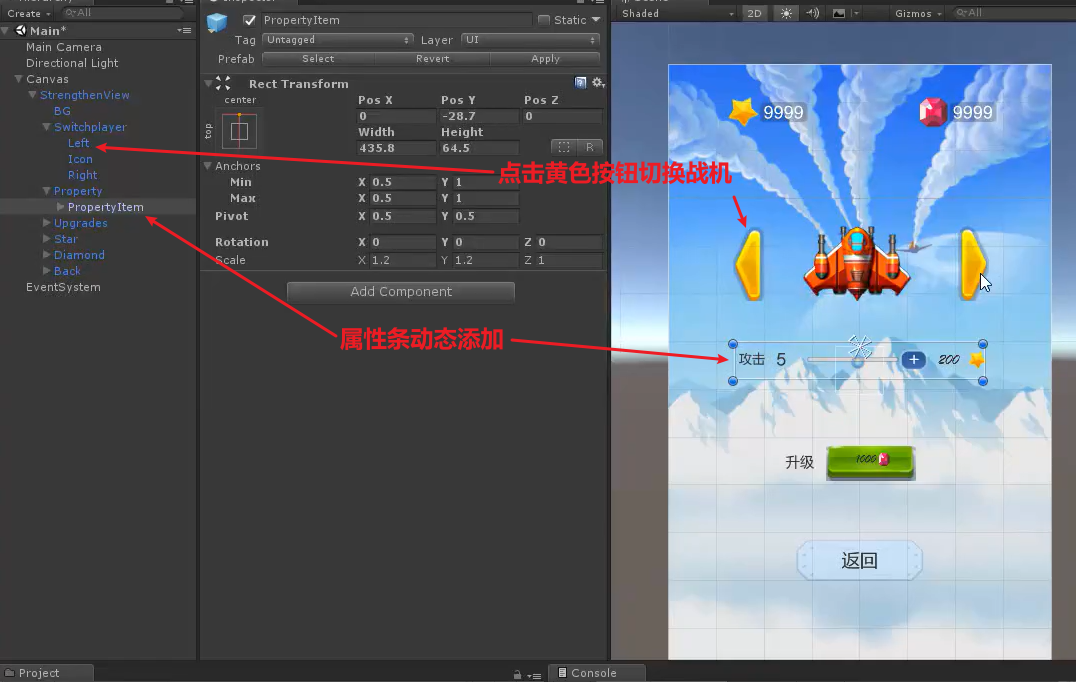

强化界面布局如下

强化界面

StrengthenView

1
2
3
4
5
6
7
8
9

[BindPrefab(Path.STRENGTHEN_VIEW)]
public class StrengthenView : ViewBase
{
    protected override void InitChild()
    {
        UIUtil.Get("Switchplayer").Go.AddComponent<SwitchPlayer>();
    }
}

Path内的路径自己添加即可

给SwitchPlayer对象添加SwitchPlayer脚本，SwitchPlayer脚本也是一个继承了ViewBase的脚本

修改ViewBase的逻辑

switchPlayer虽然是StrengthView的子物体，但我们依然可以给它单独添加脚本，同样继承ViewBase。只不过我们此时需要修改ViewBase，比如父物体的View被设定为Hide时，所有子物体的View也要被设定Hide。否则子物体肯定会出现问题。

我们先给ViewBase添加InitSubView方法，每个父UI元素动态挂载View脚本时，都会调用这个方法来缓存自己子物体中的View脚本。并且使用HashSet来缓存。

但是InitSubView方法需要在Init里面调用，并且必须在子物体都动态挂载完毕View脚本后才能调用InitSubView，很容易被忽略，所以我们可以在ViewBase里面添加抽象方法，强制View脚本首先实现动态挂载的逻辑。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
using System.Collections.Generic;
using UnityEngine;

public abstract class ViewBase : MonoBehaviour, IView//改为抽象方法
{
    private HashSet<ViewBase> _views;
    private UIUtil m_UIUtil;
    protected UIUtil UIUtil
    {
        get
        {
            if (m_UIUtil == null)
            {
                m_UIUtil = gameObject.AddComponent<UIUtil>();
                m_UIUtil.Init();
            }
            return m_UIUtil;
        }
    }
    public virtual void Init()//添加初始化方法
    {
        InitChild();
        InitSubView();//+++
        foreach (ViewBase view in _views)//+++
        {
            view.Init();
        }
    }
    protected abstract void InitChild();//添加抽象方法
    private void InitSubView()//+++
    {
        _views = new HashSet<ViewBase>();
        ViewBase view = null;
        foreach (Transform trans in transform)
        {
            view = trans.GetComponent<ViewBase>();
            if (view != null)
            {
                _views.Add(view);
            }
        }
    }
    public virtual void Hide()
    {
        foreach (ViewBase view in _views)//+++
        {
            view.Hide();
        }
        gameObject.SetActive(false);//父物体要最后隐藏，否则可能会出现问题
    }


    public virtual void Show()
    {
        gameObject.SetActive(true);
        foreach (ViewBase view in _views)//+++
        {
            view.Show();
        }
    }
}

修改SelectedHeroView，Init方法不需要重载了

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
using UnityEngine;

[BindPrefab(Path.SELECT_HERO_VIEW)]
public class SelectedHeroView : ViewBase
{
    protected override void InitChild()//+++
    {
        UIUtil.Get("Heros").Go.AddComponent<SelectHero>();
        UIUtil.Get("OK/Start").AddListener(() =>
        {
            //TODO: 切换到选择关卡界面
        });
        UIUtil.Get("Exit").AddListener(() =>
        {
#if UNITY_EDITOR
            UnityEditor.EditorApplication.ExitPlaymode();
#endif
            Application.Quit();
        });
        UIUtil.Get("Strengthen").AddListener(() =>
        {
            //TODO: 切换到强化界面
        });
    }
}

修改StartView

1
2
3
4
5
6
7
8
9
10
11
[BindPrefab(Path.START_VIEW)]
public class StartView : ViewBase
{
    protected override void InitChild()
    {
        UIUtil.Get("Start").AddListener(() =>
        {
            UIMgr.Instance.Show(Path.SELECT_HERO_VIEW);
        });
    }
}

SwitchPlayer

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
using System;
using System.Collections.Generic;
using UnityEngine;

public class SwitchPlayer : ViewBase
{
    private int _id;//标记当前正在选择中的飞机id
    private Dictionary<int,List<Sprite>> _planeSprites;
    private Action<int> _onSwitch;
    protected override void InitChild()
    {
        UIUtil.Get("Left").AddListener(() => { Switch(ref _id, -1); });
        UIUtil.Get("Right").AddListener(() => { Switch(ref _id, 1); });
        LoadSprite();
    }
    private void LoadSprite()
    {
        _planeSprites = new Dictionary<int,List<Sprite>>();
        Sprite[] sprites = LoadMgr.Instance.LoadAll<Sprite>(Path.PLAYER_PICTURE_FOLDER);
        foreach (Sprite sprite in sprites)
        {
            string[] idData = sprite.name.Split('_');
            int playerId = int.Parse(idData[0]);
            if (!_planeSprites.ContainsKey(playerId))
            {
                _planeSprites.Add(playerId, new List<Sprite>());
            }
            _planeSprites[playerId].Add(sprite);
        }
    }
    public override void Show()
    {
        _id = DataMgr.Instance.Get<int>(DataKeys.PLANE_ID);
        Switch(ref _id, 0);
    }
    private void Switch(ref int id,int direction)
    {
        UpdateId(ref id,direction);
        UpdateSprite(id);
        _onSwitch?.Invoke(id);
    }
    private void UpdateId(ref int id,int direction)
    {
        int min = 0;
        int max = _planeSprites.Count;
        id += direction;
        id = id < 0 ? min : id >= max ? max - 1 : id;
    }
    public void OnSwitchAction(Action<int> action)
    {
        _onSwitch = action;
    }
    private void UpdateSprite(int id)
    {
        int level = DataMgr.Instance.Get<int>(DataKeys.LEVEL);//从存档获取当前等级
        UIUtil.Get("Icon").SetSprite(_planeSprites[id][level]);
    }
}

我们的飞机有4个种类，每个种类有4个等级。先用_planeSprites字典把所有的飞机都缓存起来，这个字典的Count代表了所有飞机种类（4个）。按照这个数值来确定选择飞机的边界。

在LoadSprite方法中，初始化_planeSprites字典

在UpdateId方法中检测当前选择的id，确保不会越界，注意方法内使用了嵌套的三元运算。

在UpdateSprite方法中确定当前选择的战机的等级，并显示。

注意这里重载了Show方法，但是没有调用base.Show，可能会出现问题

DataKeys

在配置文件中的变量名，我们自己写一个文件对应好。在Scripts——Const文件夹内新建DataKeys

1
2
3
4
5
6
7
8
9
10
public class DataKeys
{
    public const string LIFE = "life";
    public const string ATTACK = "attack";
    public const string FIRE_RATE = "direRate";
    public const string STAR = "star";
    public const string DIAMOND = "diamond";
    public const string PLANE_ID = "PlaneId";
    public const string LEVEL = "level";
}

增加加载API

给ILoader、ResourceLoader和LoadMgr添加加载任意类型的API

1
2
3
4
5
6
7
8
9
10
using System;
using UnityEngine;

public interface ILoader
{
    public GameObject LoadPrefab(string path, Transform parent = null);
    void LoadConfig(string path,Action<object> onComplete);
    T Load<T>(string path) where T : UnityEngine.Object;
    T[] LoadAll<T>(string path) where T: UnityEngine.Object;
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
public class ResourceLoader : ILoader
{
    //...
    public T Load<T>(string path) where T : UnityEngine.Object
    {
        T item = Resources.Load<T>(path);
        if (item == null)
        {
            Debug.LogError("未在路径中找到对象：" + path);
            return null;
        }
        else
            return item;
    }
    public T[] LoadAll<T>(string path) where T : UnityEngine.Object
    {
        T[] items = Resources.LoadAll<T>(path);
        if (items == null || items.Length == 0)
        {
            Debug.LogError("未在路径中找到对象：" + path);
            return null;
        }
        else
            return items;
    }
}
1
2
3
4
5
6
7
8
9
10
11
12
public class LoadMgr : NormalSingleton<LoadMgr>, ILoader
{
    //...
    public T Load<T>(string path) where T : UnityEngine.Object
    {
        return m_Loader.Load<T>(path);
    }
    public T[] LoadAll<T>(string path) where T : UnityEngine.Object
    {
        return m_Loader.LoadAll<T>(path);
    }
}

SelectedHeroView

在其中添加打开强化界面的逻辑

1
2
3
4
5
6
7
8
9
10
11
12
13
14
using UnityEngine;

[BindPrefab(Path.SELECT_HERO_VIEW)]
public class SelectedHeroView : ViewBase
{
    protected override void InitChild()
    {
        //...
        UIUtil.Get("Strengthen").AddListener(() =>
        {
            UIMgr.Instance.Show(Path.STRENGTHEN_VIEW);
        });
    }
}
